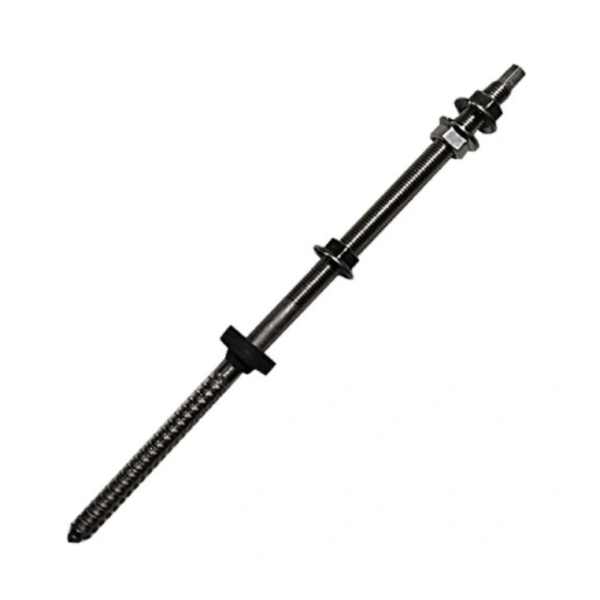

Double-thread M10x200 with EPDM washer

• Application: Metal roof tiles (tile sheet roofing)
• Mounting adapter for M10 double-thread screw
• Material: Stainless steel
• Dimensions: 80 x 30 x 4 mm

• Height: 30 mm
• Length: 50 mm
• Hole: M8
• Material: Aluminium
• Colour: Silver

• Structural element for: metal roof tiles.
• Stainless steel double thread with a set of nuts and an EPDM gasket.
• Total length: 250 mm
• Screw depth: 80 mm
• Adapter dimensions: 80 x 30 x 4 mm
• Smooth transition between threads: 20 mm

• Width: 90 mm
• Material: Stainless steel
• Application: For mounting structures on standing seam metal roofs

✔️ Material: stainless steel, powder-coated

✔️ Arm length: 140 mm

✔️ Color: black

✔️ Installation: rafter mounting (M8x120 and M10x20 bolts)

✔️ Application: tile roofs (concrete/ceramic)

• Material: Stainless steel
• Dimensions [mm]: 230 x 30 x 4
• Suitable roof types: Bitumen shingles, roofing felt
• Mounting method: Screwed to decking / board

✅ Suitable for ceramic and concrete tiles

✅ Dimensions: 470 x 30 x 5 mm

✅ Material: stainless steel

• Structural element for: ceramic roof tiles, concrete roof tiles
• Arm length: 14 cm
• Material: stainless steel

• Material: Stainless steel
• Dimensions [mm]: 190 x 30 x 4
• Suitable for: Roofs covered with bitumen shingles or roofing felt
• Mounting method: Screwed to roof decking / board

• Length: 50 mm
• Hole: M8
• Material: aluminum
• Color: silve

• Length: 50 mm
• Hole: M8
• Material: aluminum
• Color: Black

• Designed for fastening mounting rails to rafter elements on roofs covered with plain tiles (plain tile roof).
• Made of 2 mm thick stainless steel
• Dimensions: 240 x 150 mm
• The use of this hook does not require cutting or grinding roof tiles, which shortens installation time

• Application: Metal roof tiles (tile sheet roofing)
• Stainless steel double-thread screw with complete set of nuts and EPDM sealing washer
• Threaded depth: 80 mm
• Length: 300 mm
• Smooth transition between threads: 20 mm

• Height: 30 mm
• Length: 50 mm
• Hole: M8
• Material: Aluminium
• Colour: Black

• Height: 35 mm
• Length: 50 mm
• Hole: M8
• Material: aluminium
• Color: silver

• Structural element for: metal roof tiles.
• Stainless steel double thread with a set of nuts and an EPDM gasket.
• Total length: 300 mm
• Screw depth: 80 mm
• Adapter dimensions: 80 x 30 x 4 mm
• Smooth transition between threads: 20 mm
