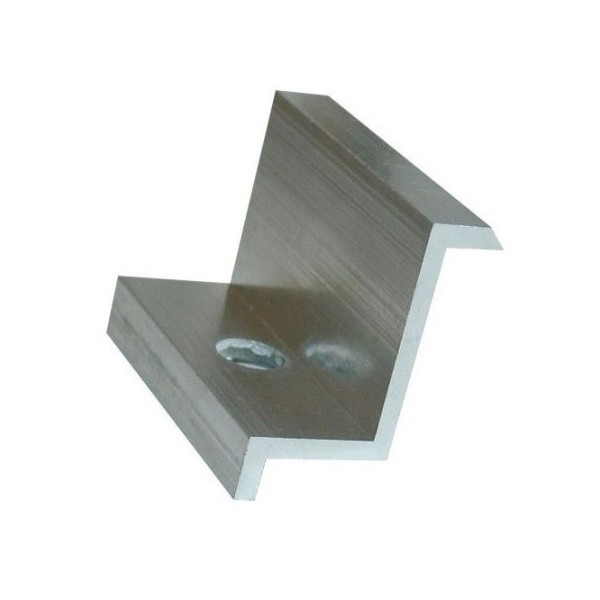

Silver end clamp 30mm

• Length: 50 mm
• Hole: M8
• Material: aluminum
• Color: silve

• Structural element for: metal roof tiles.
• Stainless steel double thread with a set of nuts and an EPDM gasket.
• Total length: 300 mm
• Screw depth: 80 mm
• Adapter dimensions: 80 x 30 x 4 mm
• Smooth transition between threads: 20 mm

• Material: Stainless steel
• Dimensions [mm]: 230 x 30 x 4
• Suitable roof types: Bitumen shingles, roofing felt
• Mounting method: Screwed to decking / board

Mounted to roof rafters

Adjustable 14 cm arm allows installation under various tiles

Pressed manufacturing ensures smooth edges

Installation requires wood screws (e.g., M8x120) and M10x20 bolts with nuts

Optional use of S-type support bracket

• Application: Flat roof – ballast mounting structure (non-invasive installation)
• Material: Aluminium + polyethylene
• Dimensions: 425 x 80 x 187 mm

• Height: 35 mm
• Length: 50 mm
• Hole: M8
• Material: aluminium
• Color: black

• Width: 90 mm
• Material: Stainless steel
• Application: For mounting structures on standing seam metal roofs

• Designed for fastening mounting rails to rafter elements on roofs covered with plain tiles (plain tile roof).
• Made of 2 mm thick stainless steel
• Dimensions: 240 x 150 mm
• The use of this hook does not require cutting or grinding roof tiles, which shortens installation time

• Structural element for: metal roof tiles.
• Stainless steel double thread with a set of nuts and an EPDM gasket.
• Total length: 250 mm
• Screw depth: 80 mm
• Adapter dimensions: 80 x 30 x 4 mm
• Smooth transition between threads: 20 mm

• Application: Metal roof tiles (tile sheet roofing)
• Stainless steel double-thread screw with complete set of nuts and EPDM sealing washer
• Total length: 250 mm
• Threaded depth: 80 mm
• Smooth transition between threads: 20 mm

Suitable for ceramic and concrete tiles

Dimensions: 470 x 30 x 5 mm

Material: stainless steel

• Application: Metal roof tiles (tile sheet roofing)
• Stainless steel double-thread screw with complete set of nuts and EPDM sealing washer
• Total length: 200 mm
• Threaded depth: 80 mm
• Smooth transition between threads: 20 mm

• Application: Metal roof tiles (tile sheet roofing)
• Stainless steel double-thread screw with complete set of nuts and EPDM sealing washer
• Threaded depth: 80 mm
• Length: 300 mm
• Smooth transition between threads: 20 mm

• Application: Flat roof – ballast mounting structure (non-invasive installation)
• Material: Aluminium + polyethylene
• Dimensions: 425 x 80 x 395 mm

• Height: 35 mm
• Length: 50 mm
• Hole: M8
• Material: aluminium
• Color: silver

• Structural element for: trapezoidal sheet metal
• Foot width: 100 mm
• Material: stainless steel
