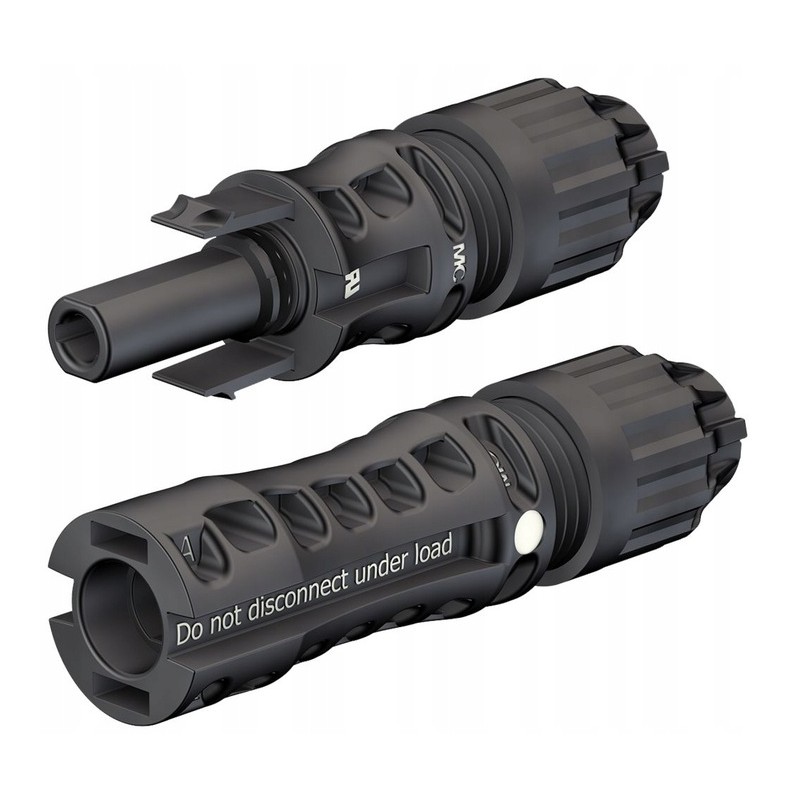

- Original STAUBLI MC4-Evo 2 – high reliability
- For 4/6 mm² cables, includes +/- pins
- Salt & ammonia resistant, max 1500 V DC, 69 A
- Low contact resistance (<0.2 mΩ), durable MULTILAM contacts
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Bezpieczna płatność i wysyłka

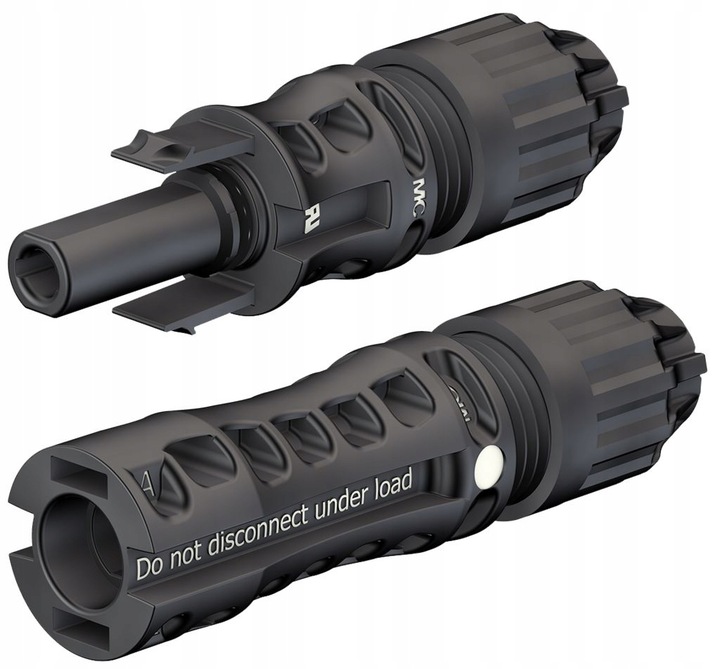

Reduce power losses, downtime, maintenance hours, and fire risk in your photovoltaic installation by using original MC4-Evo 2 connectors. The unique MULTILAM contact technology ensures excellent long-term reliability and low contact resistance throughout the product’s lifetime.
The original MC4-Evo 2 guarantees high performance even under harsh conditions. It combines best-in-class features for DC photovoltaic connectors, such as:
System maximum voltage: 1500 V DC (IEC)
Rated current IEC (85°C): 45A / 4 mm² or 53A / 6 mm²
Operating temperature: -40°C / +85°C (IEC)
Protection class:
Contact resistance: <0.2 mΩ
System maximum voltage:
1000 V DC / 1500 V DC (TÜV)
600 V DC / 1000 V DC / 1500 V DC (UL)
1500 V DC (JET)
Rated current TÜV (85°C) depending on cable cross-section:
39A – 2.5 mm²
45A – 4.0 mm²
53A – 6.0 mm²
69A – 10.0 mm²
Test voltage:
12 kV – 1000 V DC
16 kV – 1500 V DC
Data sheet
Specific References
✔️ Brand: VCX
✔️ Model: LT003
✔️ Working range: 2.5 / 4 / 6 mm²
✔️ Color: blue
✔️ Tool type: manual MC4 cable crimper
Number of cores: 1
Conductor cross-section: 6 mm²
Conductor insulation: special PVC
Rated voltage: 600/1000 V
Temperature range: –40°C to +90°C (fixed and flexible)
Minimum bending radius: approx. 4 × cable Ø
Outer diameter: 5.9 mm
Conductor material: Cu – copper
Shielding: none
Conductor cross-section: 6 mm²
Rated voltage: 600/1000 V
Operating temperature: –40°C to +90°C
UV and chemical resistance
Service life: up to 25 years
Outer diameter: 5.9 mm
Certificates: CE, TÜV, VDE
UV, ozone, and weather resistant
High mechanical strength, abrasion resistant
Long service life: up to 25 years
Flame retardant per VDE 0482-332-2, DIN EN 60332-1
Operating temperature: –40°C to +90°C
Double insulation, copper conductor
Number of cores: 1
Conductor cross-section: 6 mm²
Conductor insulation: special PVC
Rated voltage: 600/1000 V
Temperature range: –40°C to +90°C (fixed and flexible)
Minimum bending radius: approx. 4 × cable Ø
Outer diameter: 5.9 mm
Conductor material: Cu – copper
Shielding: none
