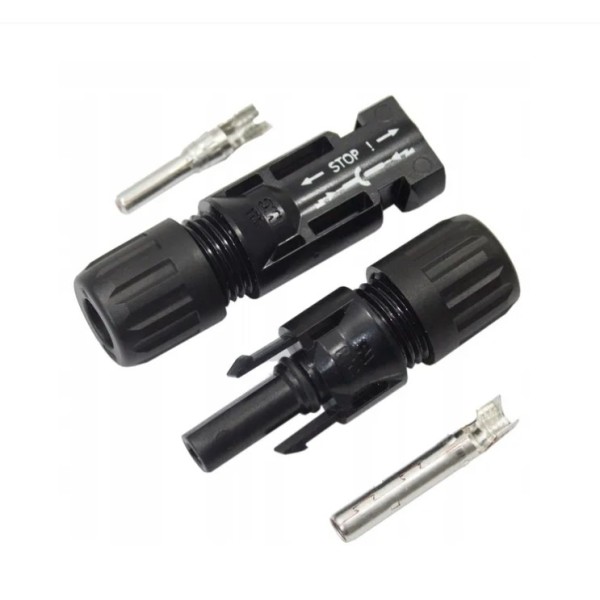

Original MC4 connectors - Staubli, made of tin-plated copper. The black seal is made of polyamide (PA) with very high resistance to thermal aging.
MC4 connectors are used to connect solar wires and cables to photovoltaic modules. One product set includes a negative and a positive connector with metal contacts.
Conductor cross-section: 6 mm²
Rated voltage: 600/1000 V
Operating temperature: –40°C to +90°C
UV and chemical resistance
Service life: up to 25 years
Outer diameter: 5.9 mm
Certificates: CE, TÜV, VDE
UV, ozone, and weather resistant
High mechanical strength, abrasion resistant
Long service life: up to 25 years
Flame retardant per VDE 0482-332-2, DIN EN 60332-1
Operating temperature: –40°C to +90°C
Double insulation, copper conductor
- Original STAUBLI MC4-Evo 2 – high reliability
- For 4/6 mm² cables, includes +/- pins
- Salt & ammonia resistant, max 1500 V DC, 69 A
- Low contact resistance (<0.2 mΩ), durable MULTILAM contacts
Number of cores: 1
Conductor cross-section: 6 mm²
Conductor insulation: special PVC
Rated voltage: 600/1000 V
Temperature range: –40°C to +90°C (fixed and flexible)
Minimum bending radius: approx. 4 × cable Ø
Outer diameter: 5.9 mm
Conductor material: Cu – copper
Shielding: none
✔️ Brand: VCX
✔️ Model: LT003
✔️ Working range: 2.5 / 4 / 6 mm²
✔️ Color: blue
✔️ Tool type: manual MC4 cable crimper
Number of cores: 1
Conductor cross-section: 6 mm²
Conductor insulation: special PVC
Rated voltage: 600/1000 V
Temperature range: –40°C to +90°C (fixed and flexible)
Minimum bending radius: approx. 4 × cable Ø
Outer diameter: 5.9 mm
Conductor material: Cu – copper
Shielding: none
