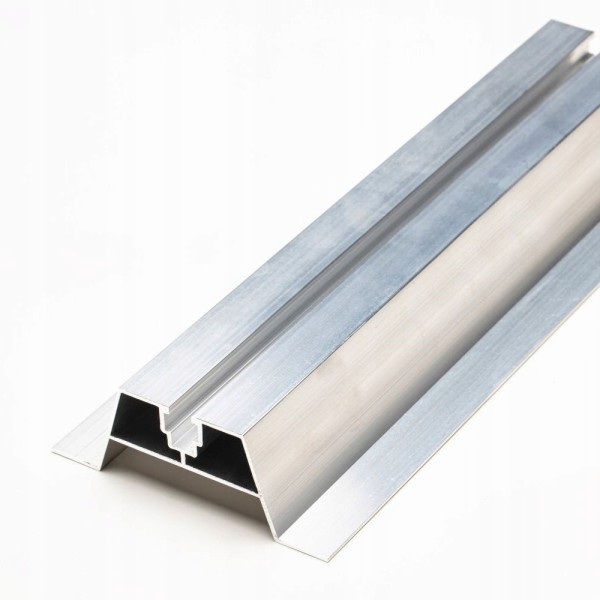

Trapezoidal Bridge T40x550 EPDM

• Bridge: trapezoidal, 400 mm high, with gasket
• Material: aluminum + polyethylene
• Upper channel: M8 sliding groove / M8 square nut
• Height [mm]: 70
• Width [mm]: 100
• Length [mm]: 400

• Inner size: 40 × 20 mm
• Thickness: 2.3 mm
• Length: 100 mm
• Material: aluminium

✅ Tilt angle: 15°
✅ Panel orientation: vertical
✅ Dimensions: 1670 × 1280 × 370 mm
✅ Bolt: hex bolt M10 × 20
✅ Nut: flange nut M10
✅ Material: aluminum
✅ Profile (angle bar): 40 × 40 × 3 mm

For 40×40 mm square profiles

Connector length: 100 mm

Internal dimensions: 40×20 mm

Wall thickness: 3 mm

Material: aluminium (corrosion-resistant)

Fasteners: stainless steel

UV and weather resistant

• Square cap, dimensions 40x40: for mounting profiles for photovoltaic panel installations.
• The cap is made of highly durable plastic and is UV resistant.
• It does not discolor or deform.
• Color: gray.

Dimensions: 40 × 40 mm

Colour: grey

Material: UV- and weather-resistant plastic

Weatherproof: yes

Suitable for: PV, aluminium and steel mounting profiles

• Cross-section: 40 x 40 mm
• Length: 2200 mm (+ 0-10 mm)
• Material: aluminium
• Upper channel: M8 sliding groove / M8 square nut
• Lower channel: M10 hexagon head screw

Dimensions: 40 × 40 mm

Material: UV- and weather-resistant plastic

Colour: black

Quantity per set: 10 pieces

Application: for PV, aluminium and steel mounting profiles

• Connector dimensions: 40 × 20 mm (internal)
• Thickness: 2.3 mm
• Length: 100 mm
• Material: aluminum

• Cross-section: 40 × 40 mm
• Length: 2200 mm (+0–10 mm)
• Material: aluminium
• Upper channel: sliding nut M8 / square nut M8
• Lower channel: hexagon head bolt M10
• Color: black

• Material: aluminum + polyethylene (EPDM)
• Height [mm]: 60
• Width [mm]: 100
• Length [mm]: 430

✅ Tilt angle: 15°
✅ Panel orientation: horizontal
✅ Dimensions: 1000 × 910 × 240 mm
✅ Bolt: hex bolt M10 × 20
✅ Nut: flange nut M10
✅ Material: aluminum
✅ Profile (angle bar): 40 × 40 × 3 mm

• Square cap, dimensions 40x40: for mounting profiles for photovoltaic panel installations.
• The cap is made of highly durable plastic and is UV resistant.
• It does not discolor or deform.
• Color: black

• Length: 6 m (cut to max. 150 cm)
• Dimension: 40 × 40 × 3 mm
• Material: aluminium

✅ Tilt angle: 25°
✅ Panel orientation: horizontal
✅ Dimensions: 1000 × 880 × 400 mm
✅ Bolt: hex bolt M10 × 20
✅ Nut: flange nut M10
✅ Material: aluminum
✅ Profile (angle bar): 40 × 40 × 3 mm

Length: 1200 mm

Cross-section: 40 × 40 mm

Material: aluminum

Weight: 0.80 kg/m

Top channel: sliding slot M8 / M8 square nut

Bottom channel: hex bolt M10
