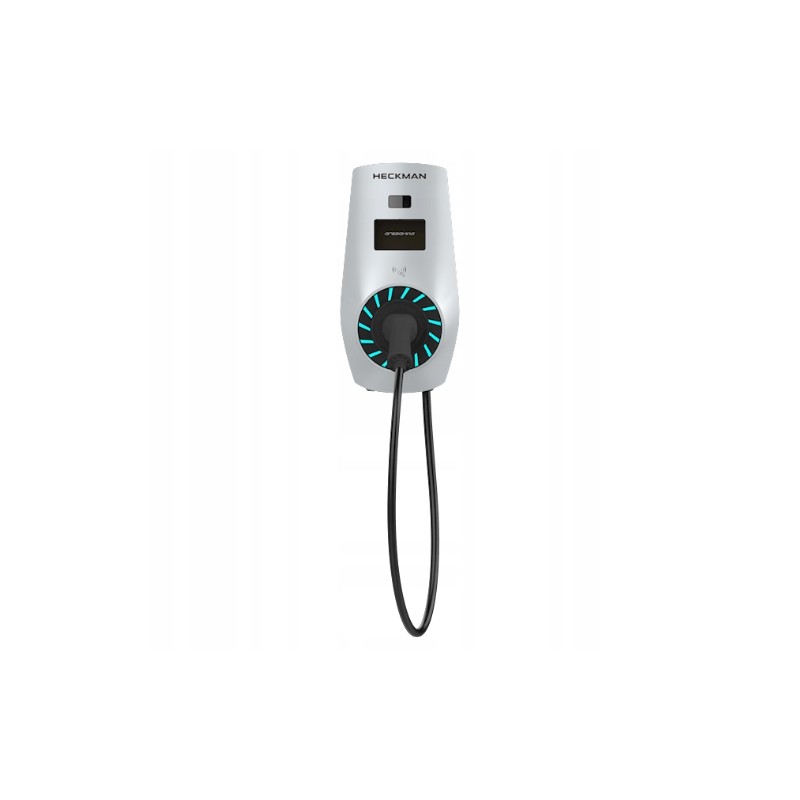

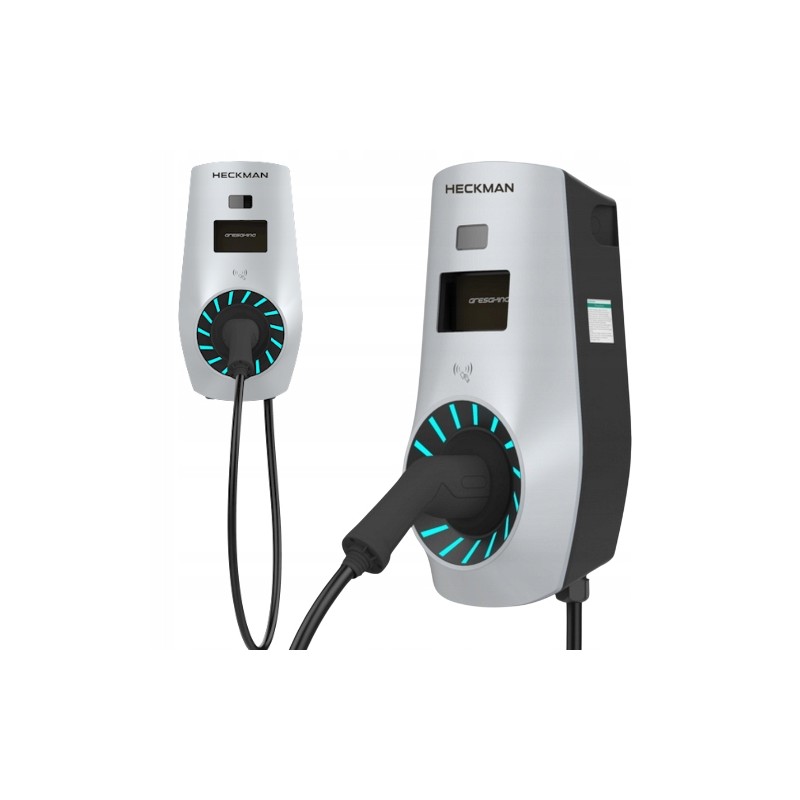

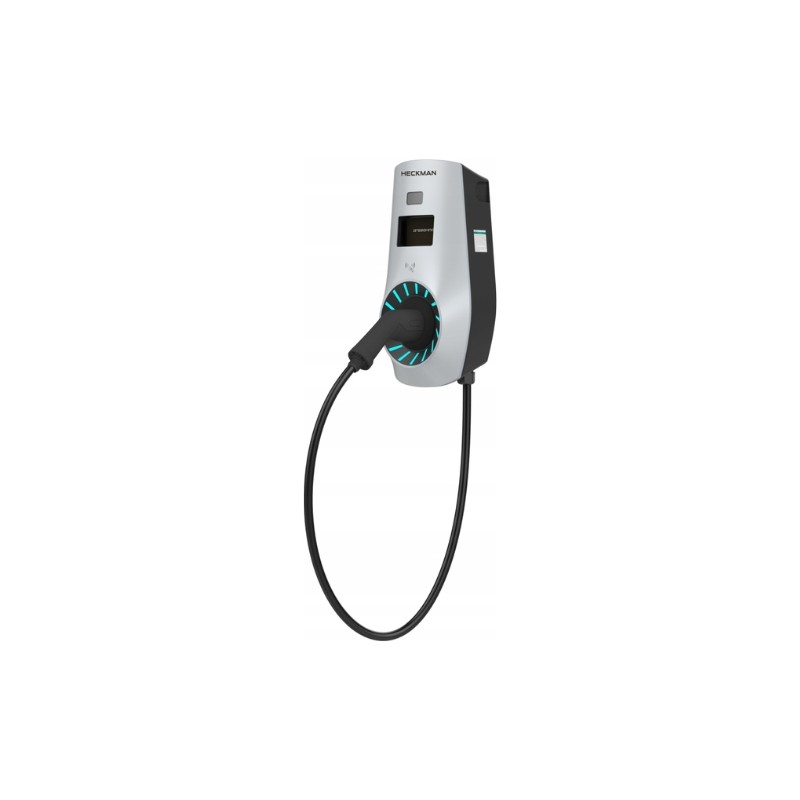

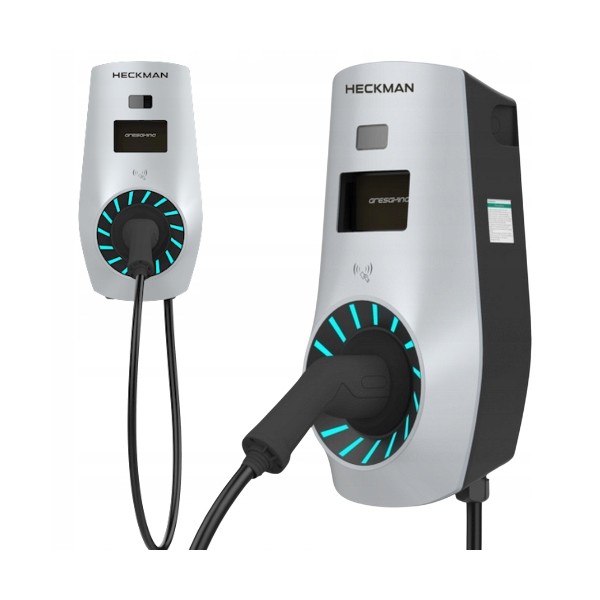

The Gresgying TURBO Wallbox H1-EU22-C is a smart, high-performance AC charger designed for home, office, and commercial use.
It combines ultra-fast 22 kW charging, advanced communication options, and intelligent load management.
With RFID/NFC authentication and OCPP 1.6J, it’s perfect for public or semi-public installations.
✅ Charging power: 22 kW (AC) / 32 A
✅ Control: Mobile App, LCD Display, Plug & Play
✅ Authentication: RFID, NFC, Mobile App
✅ Communication: WiFi, Bluetooth, 4G, LAN, OCPP 1.6J
✅ Safety: Built-in RCD Type A (30mA) + DC 6mA
✅ Durability: IP65 protection, IK08 impact resistance
✅ Connector: CCS Type 2, 5 m cable
✅ Smart functions: Load management, public mode
| Parameter | Value |
|---|---|
| Nominal voltage | 400 V |
| Frequency | 50/60 Hz |
| Output current | 32 A |
| Output power | 22 kW |
| Protection rating | IP65 |
| Mechanical strength | IK08 |
| Operating temperature | –30°C to +50°C |
| Storage temperature | –30°C to +85°C |
| Humidity | 5% – 95% RH |
| Max installation height | 2000 m |
| Mounting type | Wall-mounted |

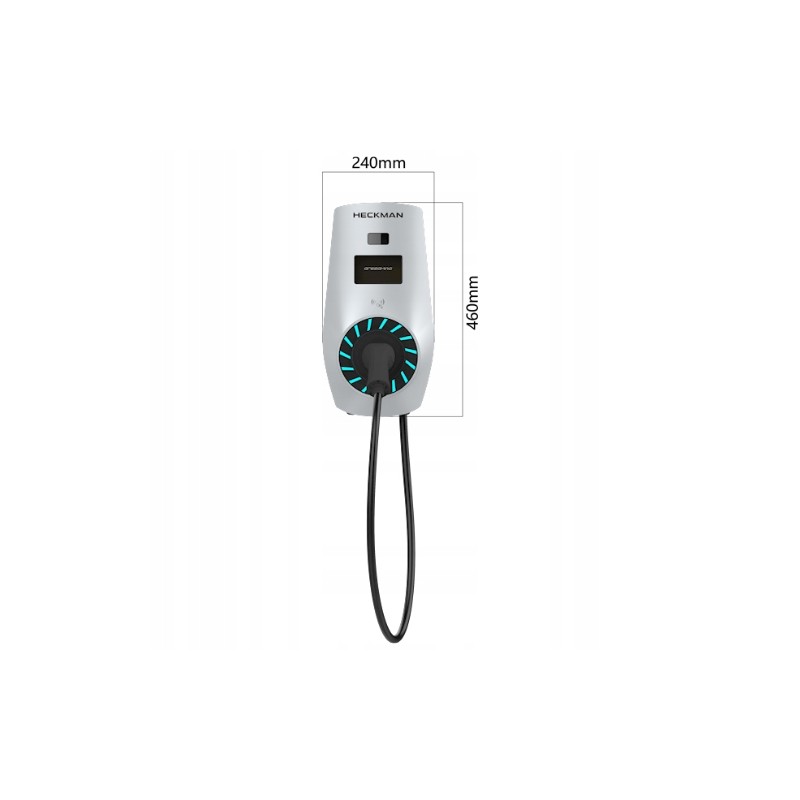

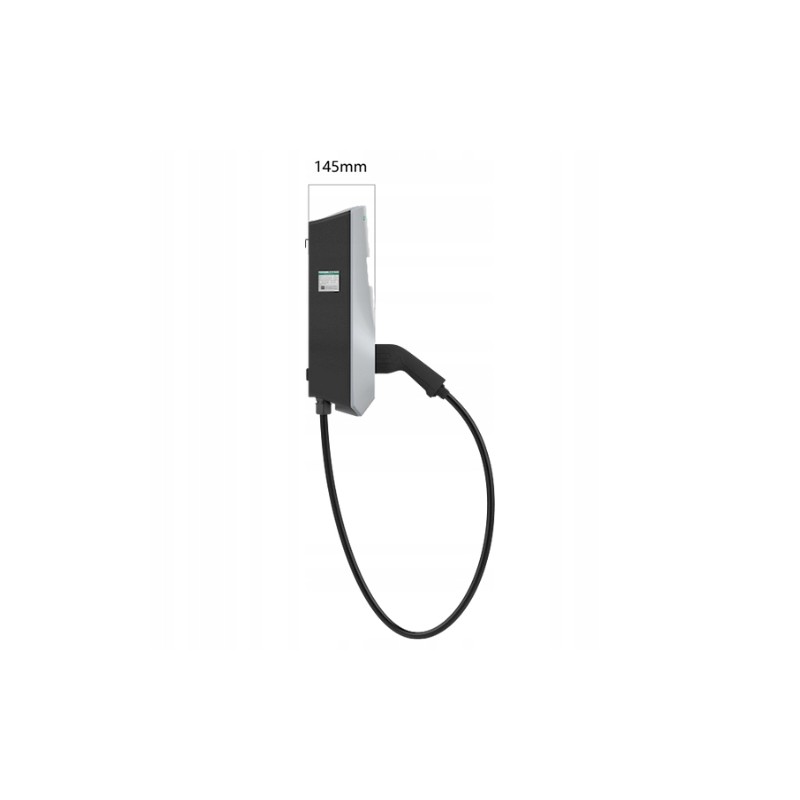

| Dimensions | 240 × 145 × 460 mm |
| Cable length | 5 m |
| Warranty | 2 years |
Compatible with all European EVs and PHEVs
Stable and fast 22 kW AC charging
Industrial-grade protection (IP65 / IK08)
Smart user control via App, RFID, or NFC
Ideal for residential, commercial, and public charging
