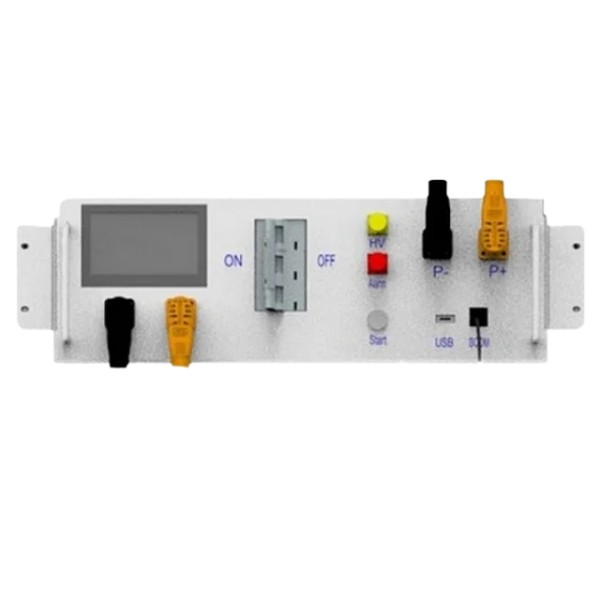

✅ Complete kit: BMS PDU-2 + base
✅ Easy installation in rack cabinets
✅ Expandable system — up to 12 units
✅ Stable and safe communication with battery modules
✅ Local service and technical support
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Bezpieczna płatność i wysyłka
Convenient – The 19-inch standard module design allows easy installation and maintenance.
Safe and reliable – LiFePO4 material ensures safety and long life. The module has low self-discharge, can last up to 6 months without charging, has no memory effect, and offers excellent performance during shallow charge and discharge cycles.
Intelligent BMS – Protection features include over-discharge, overcharge, overcurrent, and high or low temperature. The system automatically manages charging and discharging and balances the current and voltage of each cell. The BMS can connect up to 12 DEYE batteries in series.
Environmentally friendly – The module is non-toxic, environmentally safe, and eco-friendly.
Flexible configuration – Multiple modules can be connected in parallel to increase capacity and power. Supports USB updates, Wi-Fi updates (optional), and remote updates (compatible with Deye inverter).
Wide operating temperature range – from -20°C to 55°C.
✅ Manufacturer: DEYE
✅ Type: current transformer (CT)
✅ Condition: new, original
✅ Application: energy storage systems / DEYE inverters
✅ Cable included: yes
✅ Installation: quick and easy (mounted on phase conductor)
✅ Nominal capacity: 100 Ah / 5.12 kWh
✅ Nominal voltage: 51.2 V (operating range 43.2–57.6 V)
✅ Usable energy: approx. 4.6 kWh at 90% DoD
✅ Discharge current: continuous 100 A, peak 150 A (up to 120 s)
✅ Cycle life: >6000 cycles at 90% DoD
✅ Cell chemistry: LiFePO₄
✅ BMS system: advanced, full protection
✅ Communication: CAN2.0, RS485, optional WiFi / Bluetooth / APP
✅ Operating temperature: charge 0–55°C, discharge -20–55°C
✅ Certifications: UN38.3, IEC62619, CE, UL1973, UL9540A
✅ Manufacturer: DEYE
✅ Type: current transformer (CT)
✅ Condition: new, original
✅ Application: energy storage systems / DEYE inverters
✅ Cable included: yes
✅ Installation: quick and easy (mounted on phase conductor)
✅ Safe and durable – LiFePO₄ technology ensures high safety
✅ Capacity (Ah): 100
✅ Scalability: up to 12 units in one rack cabinet
✅ Nominal voltage (V): 51.2
✅ Eco-friendly choice – a non-toxic battery made from environmentally friendly materials
✅ Energy (kWh): 5.12
✅ Cable type: Ethernet patchcord
✅ Standard: CAT.5e
✅ Cable type: UTP (unshielded)
✅ Length: 2 m
✅ Connectors: RJ45 8P8C – RJ45 8P8C
✅ Wiring scheme: 1:1
✅ Color: yellow
