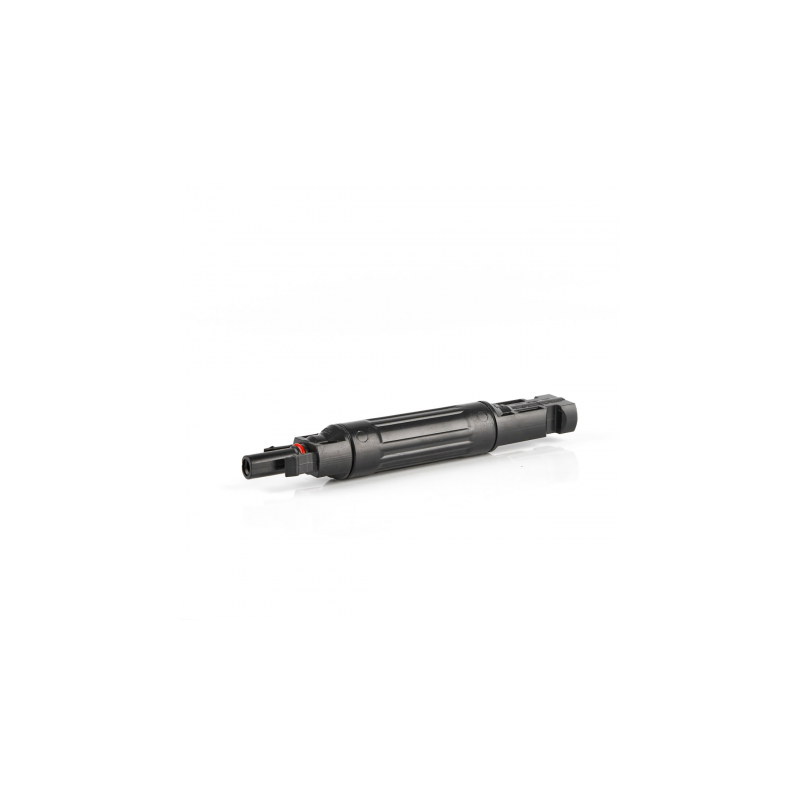

VCX DC fuse MC4 32A

Rated DC voltage: up to 1000V

Number of PV strings: 2

MPPT inputs: 2

Surge protection type: DEHN Type 2 (952510)

Connectors: MC4 Stäubli

Mounting type: surface-mounted

Enclosure: NOARK 8T

• Rated current: 16 A
• Rated voltage: 1000 V DC
• Characteristic: time-delay (slow blow)
• Dimensions: 10 × 38 mm
• Operating temperature: -40 ~ +90 °C
• Standard: IEC60269

Rated DC voltage: up to 1000V

Number of PV strings: 2

Number of MPPT inputs: 2

Surge protection type: T1+T2

SPD manufacturer: DEHN 900070

Enclosure: NOARK 12T

• Protection class: Type 1+2
• Mounting: DIN rail 35 mm
• Max. PV voltage: 1200 V DC
• Short-circuit withstand: 10 kA
• Protection degree: IP20
• Operating temperature: -40°C ~ +80°C

• Protection class: TYPE 2
• Mounting method: 35 mm DIN mounting rail
• Rated operating voltage: 1000 V
• Max. current: 40 kA
• Protection rating: IP 20
• Operating temperature range: -30°C / +50°C

• Rated current: 15 A
• Rated voltage: 1000 V DC
• Characteristic: time-delay (slow blow)
• Dimensions: 10 × 38 mm
• Operating temperature: -40 ~ +90 °C
• Standard: IEC60269

• Rated current: 32 A
• Number of poles: 2P
• Fuse link size: 10 x 38 mm
• Terminal capacity: 0.5–10 mm²
• Mounting method: DIN rail 35 mm
• Rated voltage (Un): 1000 V DC
• Number of modules: 2

• Protection class: Type 2
• Mounting: DIN rail 35 mm
• Max. PV voltage: 1000 V DC
• Short-circuit withstand: 10 kA
• Protection degree: IP20
• Operating temperature: -40°C ~ +80°C

• Protection class: TYPE 1+2
• Mounting method: DIN rail 35 mm
• Rated operating voltage: 1000 V
• Maximum operating voltage: 1060 V DC
• Degree of protection: IP20
• Operating temperature range: -30°C / +50°C
