Number of strings: 5
Current per string: 40 A
Rated current: 30 mA
Chain voltage: 300–1500 V DC
Operating voltage: 100–270 V AC
Rated voltage: 230 V AC
Protection rating: IP66
Protection class: II
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Bezpieczna płatność i wysyłka

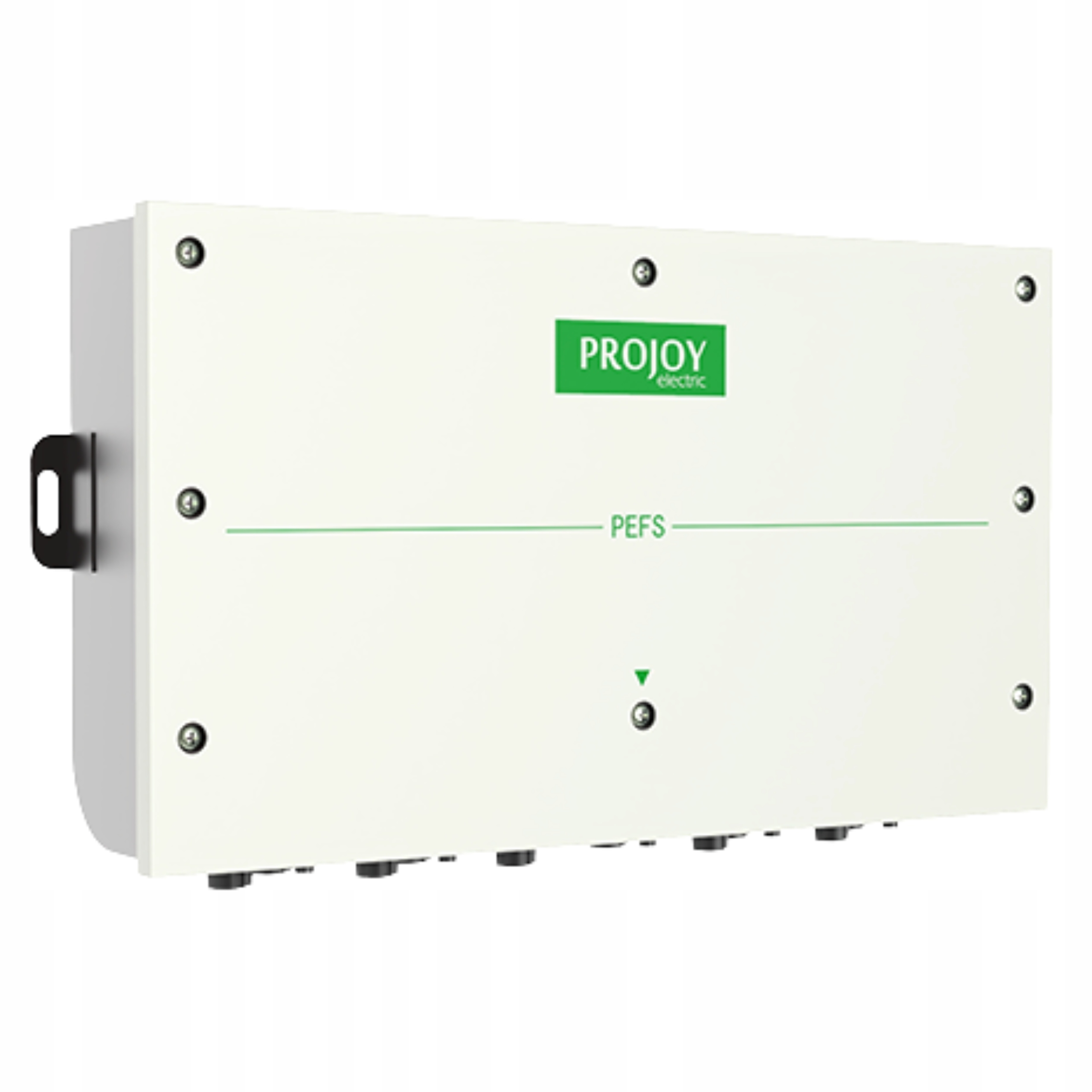

Automatic DC safety switch for photovoltaic installations. In case of fire or AC power loss on the inverter side, it automatically disconnects PV panels, effectively removing high DC voltage and ensuring the safety of firefighters and maintenance personnel.
✅ Supports up to 5 strings
✅ Automatic disconnection of PV panels when AC power is off
✅ Complete isolation between PV modules and inverter
✅ Fast response time – compliant with international safety standards
✅ High protection level – IP66
✅ Equipped with MC4 connectors for quick and safe installation
✅ Multiple switches possible for lower voltage (e.g. <120V))
✅ For rooftop and ground-mounted PV systems
✅ Safe DC disconnection during fire or AC outage
✅ Maintenance and service of PV installations
Data sheet
Number of strings: 4
Current per string: 50 A
Rated current: 30 mA
Chain voltage: 300–1500 V DC
Operating voltage: 100–270 V AC
Rated voltage: 230 V AC
Protection rating: IP66
Protection class: II
✅ Number of strings: 2
✅ Number of poles: 4
✅ String voltage: 300–1500 V
✅ Current per string: 16–50 A
✅ Rated voltage: 100–270 V AC
✅ Operating voltage range: 230 V AC
✅ Rated current: 30 mA
✅ Switch-on (charging) current: avg. 100 mA
✅ Trip current: max 300 mA
✅ Feedback contact: 24 V DC – max 300 mA
✅ Operating temperature range: −20°C – +50°C
✅ Max operating temperature before automatic shutdown: +70°C
✅ Ambient temperature range: −40°C – +85°C
✅ Protection level: IP66
✅ Protection class: II
✅ Certifications: CE
✅ DC disconnect compliant with: EN 60947-1&3
✅ Number of operations: 10,000
✅ Number of operations under load (PV1): >1500
Number of strings: 6
Current per string: up to 55 A
Rated current: 30 mA
Chain voltage: 300–1500 V DC
Operating voltage: 100–270 V AC
Rated voltage: 230 V AC
Protection rating: IP66
Protection class: II
Energy retention via capacitors
Motor-driven actuation, membrane valve
IEC 60947-1&3 compliant
AC network control, automatic operation
IP65 protection rating
Number of strings: 3
Current per string: 50 A
Rated current: 30 mA
Chain voltage: 300 – 1500 V DC
Operating voltage: 100 – 270 V AC
Rated voltage: 230 V AC
Protection rating: IP66
Protection class: II
